CPTT and the DNP3/IEEE 1815 family

DNP was originally developed by Westronic, Inc. (today General Electric). Since 1993, the [ DNP User Group ] is responsible for the further development of this protocol.

Originally the procol was called "DNP V3.00". Today the official name is "DNP3". In 2010, DNP3 was published as IEEE 1815-2010, meanwhile updated to [ IEEE 1815-2012 ] .

The DNP3 protocol family is widely used, particularly in the American/Pacific region.

DNP3/IEEE 1815 serial

DNP3 serial is used as a general transmission protocol between control systems and substations (RTUs, Remote Terminal Units). It has general abilities within the context of SCADA applications.
The messages are generally transmitted through serial connections. The frame format is abutted to FT3.

COMPROTware:Testtool offers in this protocol:

  • Simulation of Master and Slave Station.
  • Extensive state engine to implement protocols.
  • Monitoring on the serial line.
  • Interactive input of messages.
  • Different application oriented view formats for message traffic.
  • The security-related Application Layer Messages described in DNP3 SAv5 resp. IEC 62351-5 are decoded.
To get an impression of DNP3 serial in CPTT, here is a link to an example file with DNP3 serial protocol traffic:
 1812141219-SDnp3Serial-Clock.mlg

The linked DNP3 serial-MLG file is very large, it consists of more than 1,500,000 Frames. With this file we like to demonstrate that CPTT can handle large-scaled protocol traffic trouble-free.

This page describes how to install CPTT in viewer version (cost-free), how to access the MLG file and explains some CPTT formatting and filtering options.

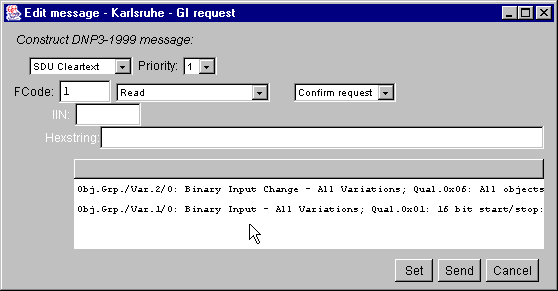

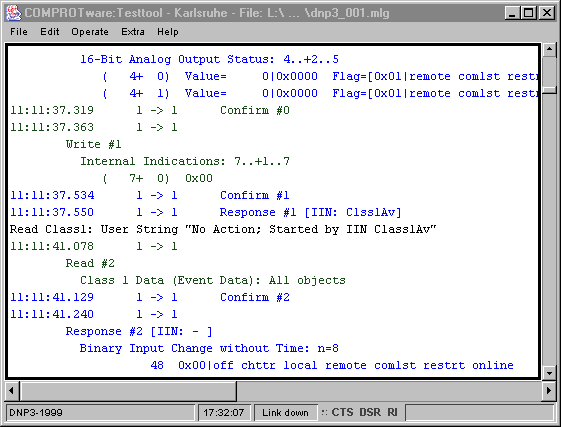

(click to enlarge)


(click to enlarge)

DNP3/IEEE 1815 over LAN/WAN

DNP3 over LAN/WAN is intended for connections through internet protocols. Both TCP/IP and UDP/IP can be used as transport layer. DNP3 over LAN/WAN has the same messages and the same frames format as DNP3.

COMPROTware:Testtool offers in this protocol:

  • Simulation of Master and Slave Station through TCP/IP as well as through UDP/IP.
  • Extensive state engine to implement protocols.
  • Master and Slave simulation via TLS-secured TCP/IP connection according DNP3 SAv5 (IEC 62351-3).
  • Network Monitoring under MS Windows.
  • Interactive input of messages.
  • Different application oriented view formats for message traffic.
  • The security-related Application Layer Messages described in DNP3 SAv5 resp. IEC 62351-5 are decoded.

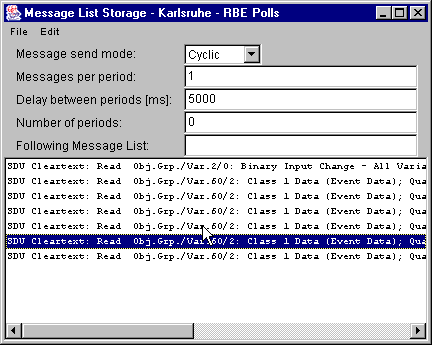

(click to enlarge)


(click to enlarge)
